Product Description

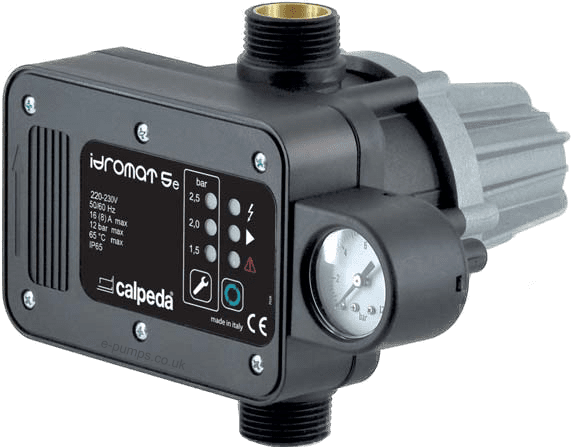

Calpeda Idromat 5-30 Pressure Controller,  3.0 bar starting pressure.


Regulation device for pump control equipped with flow and pressure sensor connected to an electronic system. Inlet and delivery connection ports of the same diameter. Built-in check valve. Pressure gauge 0-12 bar supplied as standard for IDROMAT 5. Automatic reset function for the reset of the system without manual operation.

Automatic control of pumps for water supply and increase of network pressure. Control of starting/stopping of the pump when cocks are opened/closed.

For protection of the pump:
– against dry running;
– against the risk of operation without water at the inlet (caused by a lack of water inflow in the inlet pipe under positive suction head, by a non-immersed suction pipe, by excessive suctionlift or by air entering the suction pipe);
– against operation with closed connection ports.

Operating conditions
Mains voltage: Single-phase 115 - 240 V ±5% for Idromat 5.
Frequency: 50 - 60 Hz.
Current values: 8A max during operation (16A max at start-up )
Maximum pump motor power 1,5 kW.
Protection: IP 65.
Maximum working pressure: 12 bar (1,2 MPa)
Maximum Operating temperature up to 65 °C.
Minimum flow ~ 1 l/min.
Male connections 1”

Additional Information.

Product Code
17031090000 Calpeda IDROMAT 5-30

Calpeda Idromat 5-30 Pressure Controller, 3.0 bar starting pressure

Product Code 17031090000 Calpeda IDROMAT 5-30
