e-Boost EBS800 Self Priming Pressure Pump - Product no longer available, replacement coming soon!

e-Boost EBS800 Self Priming Pressure Pump - Product no longer available, replacement coming soon!
e-Boost EBS800 Self Priming Pressure Pump - Product no longer available, replacement coming soon!

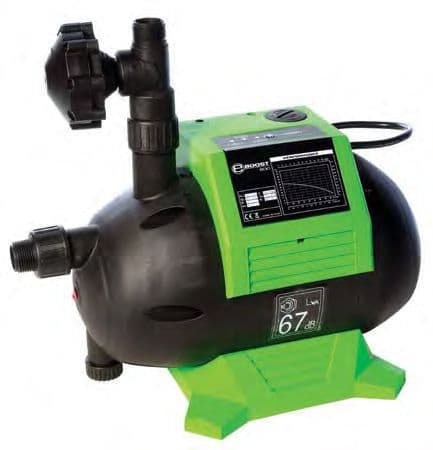

The e-Boost is a self-priming, multi-stage, pressure pump with integral electronics for the ultimate in automatic pressure boosting in domestic and industrial applications. This unique product is programmed to start and stop automatically when a valve or tap is opened or closed.

Another programme stops the pump automatically, protecting it from severe damage caused by a malfunction on the suction side e.g. dry running, sucking air, a blockage etc., or on the delivery side e.g. a dripping tap. This programme will also attempt to restart the pump three times over 20 hours to check if it has been resolved naturally or allow a manual reset once it has been resolved naturally by the user.
The reset button is extremely accessible, being located conveniently on the top of the pump. Alongside this button are a series of three coloured LED lights that, when illuminated, indicate that mains power is connected (green), the pump is running (yellow) and when the pump has stopped due to a malfunction (red). To ensure correct operation the column of water between the pump and the highest outlet must not exceed 15 metres (1.5bar). The attractive appearance, compact design, ease of use and quiet operation (67dB) make it ideal for use inside the home, however industrial users will like its many features too.

Construction of the impellers, pump case, motor cover, handle, stand and control box are in thermoplastic while the water cooled, motor body are in 304 stainless steel. The stainless steel shaft is fitted with a carbon ceramic and NBR mechanical seal and the motor incorporates overload protection. It has an integral non return valve and reservoir and is supplied with 1 metre of power cable. It is designed for pumping clean water only, at a maximum temperature of 35ºC.


230v, 1ph, 50Hz Motor
1" in/outlet (Female BSP)
0.55kW
Max Flow 85 lpm
Max Head 35 mtrs


  Please click here for a technical data sheet.

Our Price: £0.00
Inc VAT: £0.00
