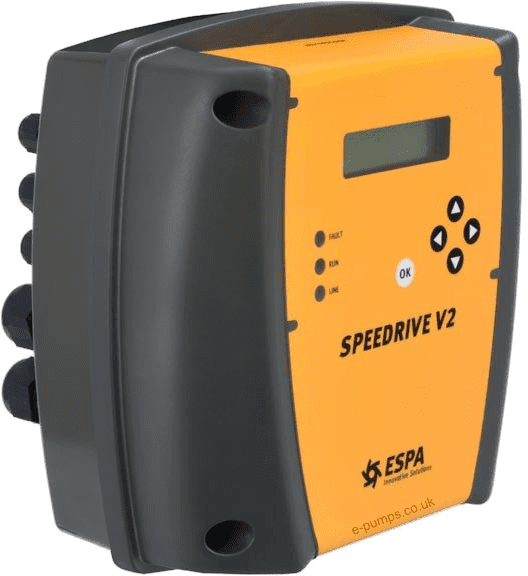

ESPA Speedrive V2 T55 Variable Frequency Drive

Applications: Assembled on a pump, booster set or installed on the wall, adjust the speed automatically to maintain the constant pressure and flow that apartment, building or installation demands at every moment.

ESPA Speedrive V2 T55 Specifications:

• IPx5 protection.
• Air cooled motor.
• Maximum 4 pumps.
• USB port for updating the devices firmware.
• 3 ~ 440V 50/60Hz
• Max motor power 5.5kW
• Adjustable working frequency.
• Dry run protection with automatic reset.
• Detection of pressure transducer failure.
• See datasheet below for more features.

Please click here to download the ESPA Speedrive V2 datasheet.
