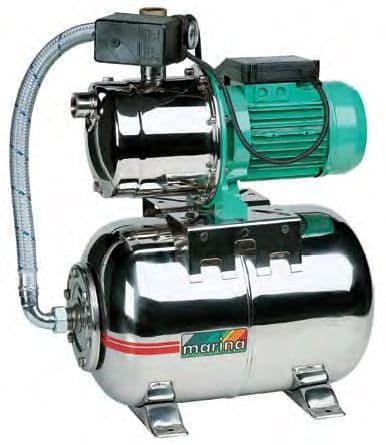

The CAM-X series incorporate self-priming “jet” pumps with pressure vessels (fitted with butyl diaphragms), pressure gauges, adjustable pressure switches and non-return valves ready assembled for installation. The pumps have 304 stainless steel bodies and are fitted with thermoplastic venturis and impellers.

They have stainless steel shafts, fitted with carbon ceramic mechanical seals, and have IP44 rated motors. These models feature 25 litre pressure vessels, in 304 stainless steel, with butyl diaphragms. They are designed for pumping clean water only at a maximum temperature of 35ºC. Maximum recommended suction lift is 8 metres. Suitable for industrial water boosting, washing systems, irrigation and for wash-down.

230v/1ph/50Hz Motor
0.75kW
1" in/outlets (Female BSP)
Max Flow 60 lpm
Max Head 32 mtrs
Switch Pre-Set @ 1.6 Bar on & 3.2 Bar off
Vessel Size 25 ltrs
